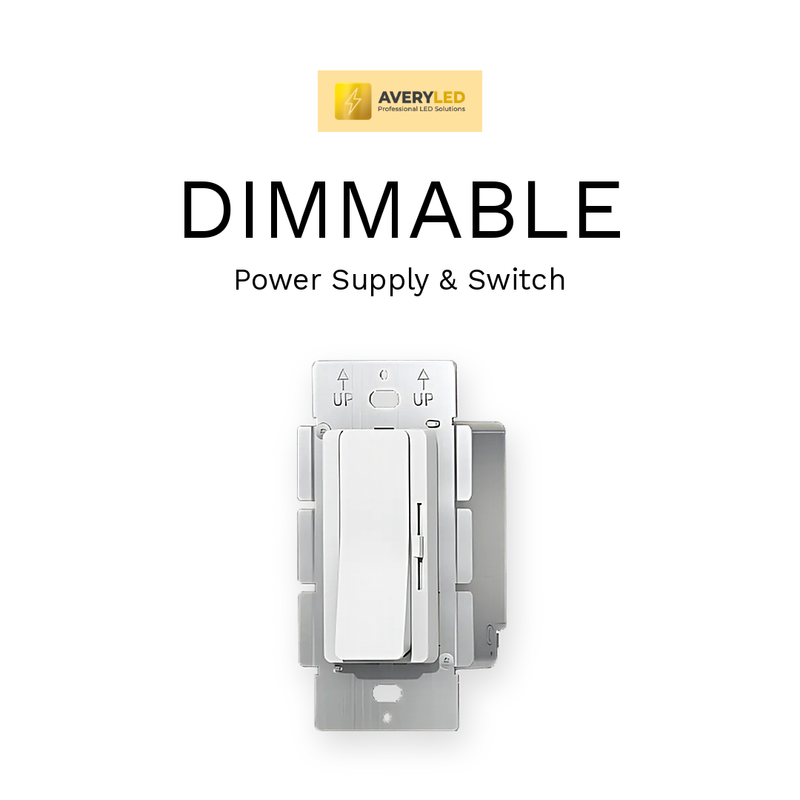

AV-DPS Series Power Supply & Dimmer Switch - Regular - hero

AV-DPS Series Power Supply & Dimmer Switch - Regular

Low Stock

Sign in to see pricing

Create an account or sign in to view prices and place orders.

Sign In

Don't have an account? Create one

UL Listed
Fast Shipping

Driver and dimmer in one wall-mount switch for 24V constant-voltage LED tape. Backed by a 3-year warranty.

  • Single brightness slider, in 60W (2.5A) or 100W (4.17A) max load.
  • Works with two-wire dim-to-warm LED strips.
  • UL, cUL and FCC certified. Class P, SELV and RoHS. Rated for dry and damp locations.
  • Sold as a case of 10 or a box of 40.

AV-DPS Series Power Supply & Dimmer Switch

The AV-DPS puts a 24V constant-voltage LED driver and a dimmer into one wall-mount switch, so the connected LED tape dims right from the wall.

Built-in active PFC delivers a power factor above 0.99, with 91% typical efficiency.

Choose your load

A single brightness slider, in 60W (2.5A) or 100W (4.17A) max load.

Works with two-wire dim-to-warm LED strips.

Built for professional installs

Rated for dry and damp locations, with an operating temperature of -40 to +60°C.

Short-circuit, overload and over-temperature protection all recover automatically. Works in standard and 3-way dimming systems.

Certified UL, cUL, FCC, Class P, SELV and RoHS, and backed by a 3-year warranty. Every model is sold as a case of 10 or a box of 40.

Output (24V DC)

Output voltage 24V DC constant voltage (24V only)
Output voltage adjustment 24 to 26V via adjustment knob
Max load 60W or 100W
Rated current, 60W 2.5A
Rated current, 100W 4.17A
Efficiency 91% typical

Input

Frequency 60Hz
Power factor Above 0.99 (active PFC)
THD (typical, full load) Below 10%

Controls & Compatibility

Controls Single brightness slider
Compatibility Two-wire dim-to-warm LED strips

Protection

Short circuit Hiccup mode, auto-recovers after the fault is removed
Overload 110% constant current mode, auto-recovers
Over temperature Shell shutdown at 100°C ±10°C, auto-recovers after cooling

Safety & Environment

Certifications UL, cUL, FCC, Class P, SELV, RoHS
Safety standards UL8750, CAN/CSA-C22.2 No.250.13
EMC emission FCC Part 15 Subpart B
Locations Dry and damp
Operating temperature -40 to +60°C
Working humidity 20 to 95% RH non-condensing
Warranty 3 years

Mechanical & Packaging

Mounting Wall-mount, standard and 3-way dimming systems
Packs Case of 10 (CT10) or box of 40 (B040)
It is a 24V constant-voltage LED driver and a dimmer in one wall-mount switch, so the connected LED tape dims from the wall.
Two-wire dim-to-warm LED strips.
60W (2.5A) and 100W (4.17A) max load.
A single brightness slider.
24V DC constant voltage only.
Every model is sold as a case of 10 or a box of 40.
UL, cUL, FCC, Class P, SELV and RoHS.
In dry and damp locations, at an operating temperature of -40 to +60°C.
3 years.
Yes. It works in standard and 3-way dimming systems.
Short-circuit, overload and over-temperature protection, all with automatic recovery.
No. The dimmer panel is not replaceable.
A qualified professional. Allow ventilation around the unit for heat dissipation and verify all wiring before powering on.

Applications

  • Under-cabinet dimming
  • Cove lighting control
  • Bedroom and living room accent lighting
  • Retail and commercial display zones
  • Architectural lighting zones
  • Multi-point switching

Compatible LED tape

  • 24V constant-voltage LED tape
  • Two-wire dim-to-warm LED strips
