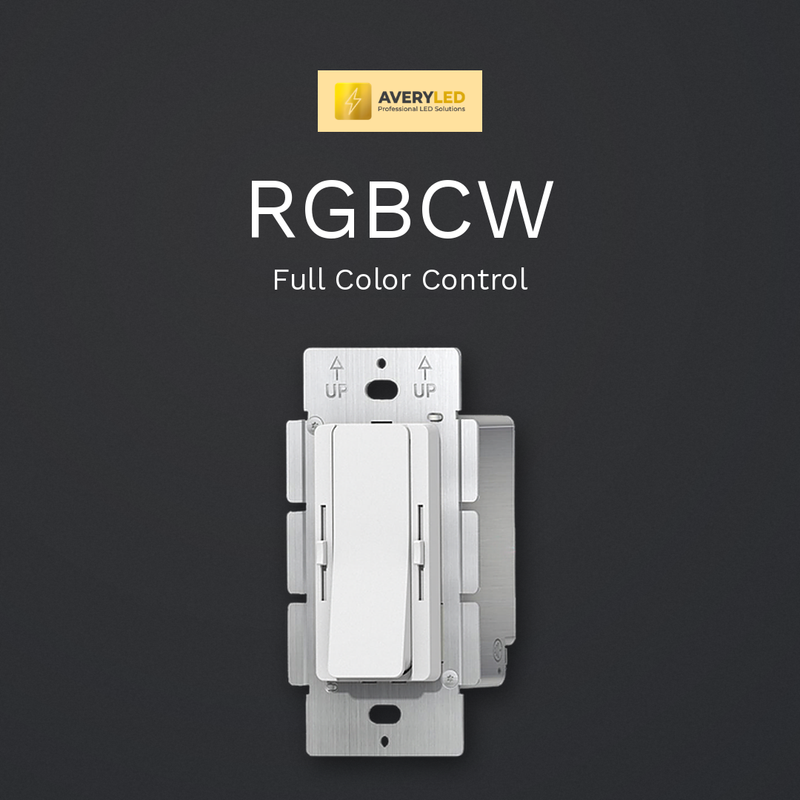

AV-DPS Series RGBCW Power Supply & Dimmer Switch - hero

AV-DPS Series RGBCW Power Supply & Dimmer Switch

Low Stock

Sign in to see pricing

Create an account or sign in to view prices and place orders.

Sign In

Don't have an account? Create one

UL Listed
Fast Shipping

Driver and dimmer in one wall-mount switch for 24V constant-voltage LED tape, with full control over brightness and color temperature. Backed by a 3-year warranty.

  • Dual sliders: one for brightness and one for color temperature.
  • 100W max load (4.17A) with 6 output lines. Works with tunable white LED strips and dims on a gamma 2.2 curve.
  • UL, cUL and FCC certified. Class P, SELV and RoHS. Rated for dry and damp locations.
  • Sold as a case of 10 or a box of 40.

AV-DPS Series RGBCW Power Supply & Dimmer Switch

The AV-DPS RGBCW puts a 24V constant-voltage LED driver and a dimmer into one wall-mount switch, so the connected LED tape dims right from the wall.

Built-in active PFC delivers a power factor above 0.99, with 91% typical efficiency.

Brightness and color temperature control

Dual sliders, one for brightness and one for color temperature, with 6 output lines and 100W (4.17A) max load.

Works with tunable white LED strips and dims on a gamma 2.2 curve.

Built for professional installs

Rated for dry and damp locations, with an operating temperature of -40 to +60°C.

Short-circuit, overload and over-temperature protection all recover automatically. Works in standard and 3-way dimming systems.

Certified UL, cUL, FCC, Class P, SELV and RoHS, and backed by a 3-year warranty. Sold as a case of 10 or a box of 40.

Output (24V DC)

Output voltage 24V DC constant voltage (24V only)
Output voltage adjustment 24 to 26V via adjustment knob
Max load 100W
Rated current 4.17A
Output lines 6
Efficiency 91% typical

Input

Frequency 60Hz
Power factor Above 0.99 (active PFC)
THD (typical, full load) Below 10%

Controls & Compatibility

Controls Dual sliders, brightness and color temperature
Compatibility Tunable white LED strips
Dimming curve Gamma 2.2

Protection

Short circuit Hiccup mode, auto-recovers after the fault is removed
Overload 110% constant current mode, auto-recovers
Over temperature Shell shutdown at 100°C ±10°C, auto-recovers after cooling

Safety & Environment

Certifications UL, cUL, FCC, Class P, SELV, RoHS
Safety standards UL8750, CAN/CSA-C22.2 No.250.13
EMC emission FCC Part 15 Subpart B
Locations Dry and damp
Operating temperature -40 to +60°C
Working humidity 20 to 95% RH non-condensing
Warranty 3 years

Mechanical & Packaging

Mounting Wall-mount, standard and 3-way dimming systems
Dimensions (L x W x H) 105 x 54 x 52 mm
Net weight 0.26 kg per unit
Packs Case of 10 (CT10) or box of 40 (B040)
It is a 24V constant-voltage LED driver and a dimmer in one wall-mount switch, so the connected LED tape dims from the wall.
Tunable white LED strips.
Dual sliders, one for brightness and one for color temperature.
100W, with a rated current of 4.17A.
24V DC constant voltage only.
It is sold as a case of 10 or a box of 40.
UL, cUL, FCC, Class P, SELV and RoHS.
In dry and damp locations, at an operating temperature of -40 to +60°C.
3 years.
Yes. It works in standard and 3-way dimming systems.
Short-circuit, overload and over-temperature protection, all with automatic recovery.
No. The dimmer panel is not replaceable.
A qualified professional. Allow ventilation around the unit for heat dissipation and verify all wiring before powering on.

Applications

  • Under-cabinet dimming
  • Cove lighting control
  • Bedroom and living room accent lighting
  • Retail and commercial display zones
  • Architectural lighting zones
  • Multi-point switching

Compatible LED tape

  • 24V constant-voltage LED tape
  • Tunable white LED strips

Category: Dimmable Power Switch
