Avery Aluminum Channel Corner Mounted Silver - Pack of 5

Avery Aluminum Channel Corner Mounted Silver - Pack of 5

In Stock

Sign in to see pricing

Create an account or sign in to view prices and place orders.

Sign In

Don't have an account? Create one

UL Listed
Fast Shipping

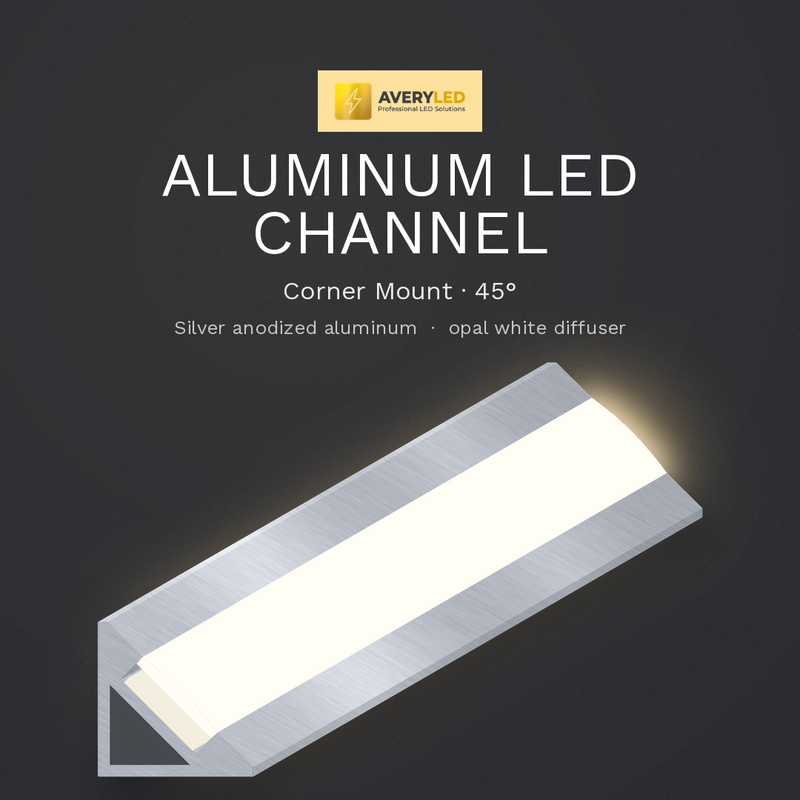

Corner-mount aluminum LED channel profile with a silver anodized aluminum body and an opal (porcelain) white diffuser. A 16 x 16 mm profile with a 45-degree strip face and an 11 mm strip channel, for lighting from inside corners, mounted with the included clips and screws.

  • Model: AV-ALUM-PW-CM50A
  • Length: 1 m (3.28 ft) per channel
  • Overall size (L x W x H): 1000 x 16 x 16 mm (39.37 x 0.63 x 0.63 in)
  • Strip channel width: 11 mm (0.43 in)
  • Mounting: corner, 45-degree strip face, with clips and screws (included)
  • Diffuser type: opal (porcelain) white polycarbonate (PC)
  • Finish: silver anodized aluminum
  • Pack of 5 includes: 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.

Corner Mount LED Channel

The AV-ALUM-PW-CM50A is a corner-mount aluminum channel profile for LED strip. It fits into a corner and angles the strip face at 45 degrees, and mounts with the included clips and screws.

Each channel is 1 m (3.28 ft) long, and the 16 x 16 mm (0.63 x 0.63 in) profile has an 11 mm (0.43 in) strip channel.

Diffuser and Finish

The body is silver anodized aluminum and the diffuser is opal (porcelain) white polycarbonate (PC).

In the Pack

5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.

Dimensions

Length 1 m (3.28 ft) per channel
Overall size (L x W x H) 1000 x 16 x 16 mm (39.37 x 0.63 x 0.63 in)
Strip channel width 11 mm (0.43 in)

Construction

Model AV-ALUM-PW-CM50A
Profile Aluminum
Mounting Corner, 45-degree strip face, with clips and screws (included)
Diffuser Polycarbonate (PC), opal (porcelain) white
Finish Silver anodized aluminum

Packaging

Pack Pack of 5
Includes 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips, 10 screws
LED strip Not included
SKU AV-ALUM-PW-CM50A-5P
The strip channel is 11 mm (0.43 in) wide.
1 m (3.28 ft) per channel.
1 m (3.28 ft) long x 16 mm wide x 16 mm high (0.63 x 0.63 in) per channel.
It mounts in a corner with the strip face angled at 45 degrees, using the included mounting clips and screws.
An opal (porcelain) white polycarbonate (PC) diffuser.
Silver anodized aluminum body with an opal (porcelain) white diffuser.
Pack of 5: 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws.
No. LED strip is not included.

Applications

  • Inside corners where a 45-degree light angle is needed
  • Corners of cabinets, shelves and display cases
  • Corner accent lighting along walls and ceilings

Category: Aluminum LED Channel

Avery Aluminum LED Channel Dimension Spec Sheet revB 2026 10 21
