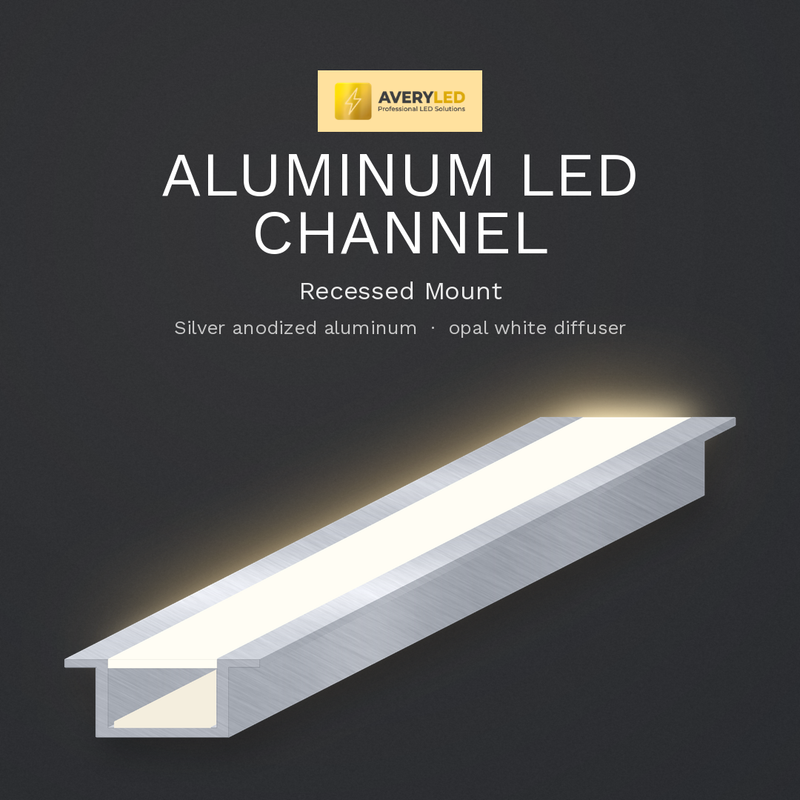

Avery Aluminum Channel Recessed Mounted Silver - Pack of 5
Sign in to see pricing
Create an account or sign in to view prices and place orders.
Sign InDon't have an account? Create one
Flanged recessed aluminum LED channel profile with a silver anodized aluminum body and an opal (porcelain) white diffuser. It sits in a 17 x 9 mm cut-out with the 25 mm flange covering the edge, secured with the included clips and screws, for a flush LED strip install.
- Model: AV-ALUM-PW-RM1237
- Length: 1 m (3.28 ft) per channel
- Overall size (L x W x H): 1000 x 25 x 10 mm (39.37 x 0.98 x 0.39 in)
- Body width: 17 mm (0.67 in)
- Depth below flange: 9 mm (0.35 in)
- Strip channel width: 14 mm (0.55 in)
- Minimum recess cut-out: 17 mm wide x 9 mm deep
- Mounting: recessed, flanged, with clips and screws (included)
- Diffuser type: opal (porcelain) white polycarbonate (PC)
- Finish: silver anodized aluminum
- Pack of 5 includes: 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.
Recessed Flanged LED Channel
The AV-ALUM-PW-RM1237 is a recessed aluminum channel profile for LED strip. Its 17 mm (0.67 in) body sits in a routed cut-out while the 25 mm (0.98 in) flange covers the edge.
Each channel is 1 m (3.28 ft) long, and the strip channel is 14 mm (0.55 in) wide.
Cut-Out and Mounting
The minimum recess cut-out is 17 mm wide x 9 mm deep. The body sits 9 mm (0.35 in) below the flange.
It is secured with the included mounting clips and screws.
Diffuser and Finish
The body is silver anodized aluminum and the diffuser is opal (porcelain) white polycarbonate (PC).
In the Pack
5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.
Dimensions
| Length | 1 m (3.28 ft) per channel |
| Overall size (L x W x H) | 1000 x 25 x 10 mm (39.37 x 0.98 x 0.39 in) |
| Flange width | 25 mm (0.98 in) |
| Body width | 17 mm (0.67 in) |
| Depth below flange | 9 mm (0.35 in) |
| Strip channel width | 14 mm (0.55 in) |
Installation
| Mounting | Recessed, flanged, with clips and screws (included) |
| Minimum recess cut-out | 17 mm W x 9 mm D |
Construction
| Model | AV-ALUM-PW-RM1237 |
| Profile | Aluminum |
| Diffuser | Polycarbonate (PC), opal (porcelain) white |
| Finish | Silver anodized aluminum |
Packaging
| Pack | Pack of 5 |
| Includes | 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips, 10 screws |
| LED strip | Not included |
| SKU | AV-ALUM-PW-RM1237-5P |
Applications
- Flush installs routed into cabinetry and shelving
- Recessed lines in walls and ceilings
- Recessed accent and display lighting
Category: Aluminum LED Channel
