Avery Aluminum Channel Surface Mounted Silver - Pack of 5

Avery Aluminum Channel Surface Mounted Silver - Pack of 5

In Stock

Sign in to see pricing

Create an account or sign in to view prices and place orders.

Sign In

Don't have an account? Create one

UL Listed
Fast Shipping

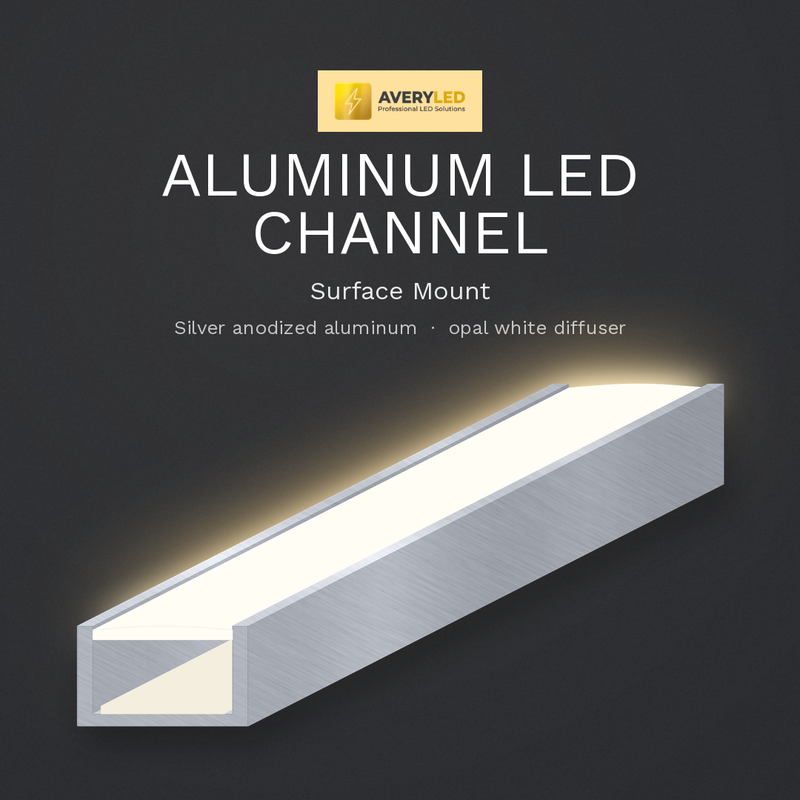

Surface-mount aluminum LED channel profile with a silver anodized aluminum body and an opal (porcelain) white diffuser. A low 17 x 10 mm profile with a 14 mm strip channel, mounted on flat surfaces with the included clips and screws.

  • Model: AV-ALUM-PW-SM1238
  • Length: 1 m (3.28 ft) per channel
  • Overall size (L x W x H): 1000 x 17 x 10 mm (39.37 x 0.67 x 0.39 in)
  • Strip channel width: 14 mm (0.55 in)
  • Mounting: surface mount with clips and screws (included)
  • Diffuser type: opal (porcelain) white polycarbonate (PC)
  • Finish: silver anodized aluminum
  • Pack of 5 includes: 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.

Surface Mount LED Channel

The AV-ALUM-PW-SM1238 is a surface-mount aluminum channel profile for LED strip. It mounts onto flat surfaces with the included mounting clips and screws.

Each channel is 1 m (3.28 ft) long, and the low 17 x 10 mm (0.67 x 0.39 in) profile has a 14 mm (0.55 in) strip channel.

Diffuser and Finish

The body is silver anodized aluminum and the diffuser is opal (porcelain) white polycarbonate (PC).

In the Pack

5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws. LED strip not included.

Dimensions

Length 1 m (3.28 ft) per channel
Overall size (L x W x H) 1000 x 17 x 10 mm (39.37 x 0.67 x 0.39 in)
Strip channel width 14 mm (0.55 in)

Construction

Model AV-ALUM-PW-SM1238
Profile Aluminum
Mounting Surface mount with clips and screws (included)
Diffuser Polycarbonate (PC), opal (porcelain) white
Finish Silver anodized aluminum

Packaging

Pack Pack of 5
Includes 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips, 10 screws
LED strip Not included
SKU AV-ALUM-PW-SM1238-5P
The strip channel is 14 mm (0.55 in) wide.
1 m (3.28 ft) per channel.
1 m (3.28 ft) long x 17 mm wide x 10 mm high (0.67 x 0.39 in) per channel.
Surface mounted with the included mounting clips and screws.
An opal (porcelain) white polycarbonate (PC) diffuser.
Silver anodized aluminum body with an opal (porcelain) white diffuser.
Pack of 5: 5 x 1 m channels, 5 diffusers, 10 end caps, 10 mounting clips and 10 screws.
No. LED strip is not included.

Applications

  • Surface mounting on flat surfaces
  • Under-cabinet and shelf lighting
  • Accent and display lighting

Category: Aluminum LED Channel
