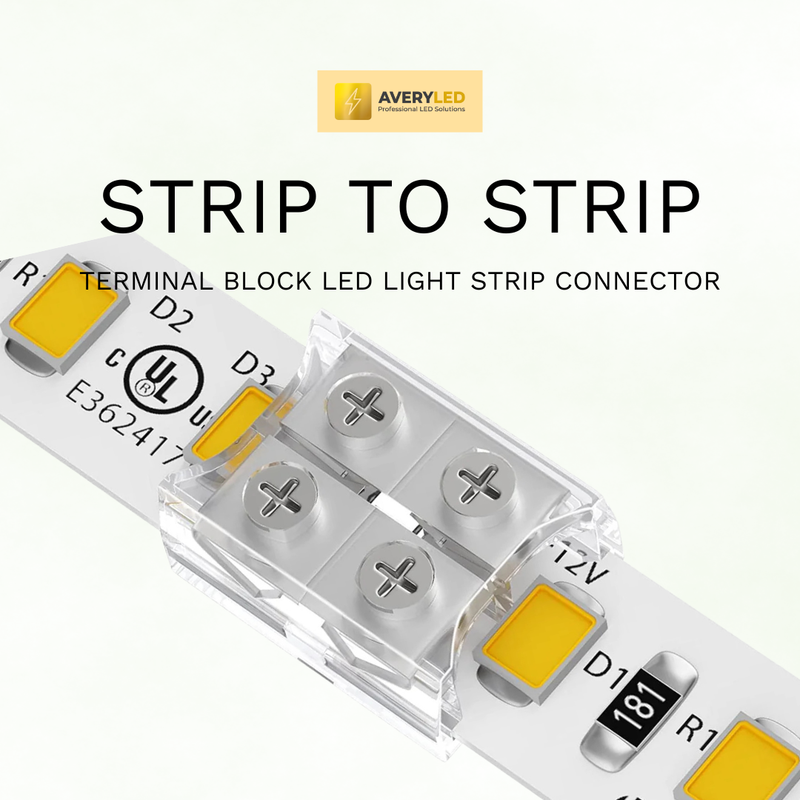

Terminal Block: Strip to Strip

Create an account or sign in to view prices and place orders.

Don't have an account? Create one

UL Listed

Fast Shipping

10mm 2 Pin Solderless Transparent Terminal Block LED Light Strip Connectors: Single Color (12 Pack)

Overview

AV-C10S-TBS-12PK-CT120

A terminal block connector is a stylish and aesthetically designed solution, perfectly suitable for connecting a wide range of lighting setups including most 5V, 12V, and 24V SMD LED Tape Lights or COB LED Strip Lights. Its sleek and transparent design enhances the overall aesthetics of the installation. This connector is remarkably easy to use, requiring minimal effort and expertise. It comes equipped with a convenient screwdriver, making the installation process even simpler.

Specifications

AV-C10S-TBS-12PK

Connection Type	Board to Board
Size	14.6×11.5×6.4mm
Pin Quantity	2
Pin Distance	4.5 mm
With Wire or NOT	No Cable
Fixing Method	Screw Fixing
Voltage	5V–24V DC
Current	6A
Housing Color	Transparent
Material	Polycarbonate, Copper
TEMP. Resistance	105°C \| 221°F
Flame Retardant Rating	UL94V-0
Type	LED Strip Flexible & Rigid
Light Color	Mono
IP Rating	IP20
PCB Width	10mm
PCB Thickness	0.25 ~0.35 mm
Warranty	1 Year

FAQ

What type of LED strip lights are these 10mm connectors designed for?

These connectors are made for single-color LED or COB strip lights with a 10mm wide PCB and 0.25–0.35 mm thickness. They support flexible and rigid mono strips commonly used for under-cabinet, cove, shelving, and display lighting.

What voltage and current can each connector handle?

Each terminal block is rated for 5V–24V DC and up to 6A of current. This covers most typical single-color LED strip runs when the total load per run stays within both the strip and connector ratings.

Do I need to solder, or can these be installed with basic tools?

No soldering is required. Installation involves inserting the 10mm strip and compatible wire into the connector, then tightening the screws with the included mini screwdriver to secure the connection. This makes on-site joins and repairs fast and accessible.

What wire gauge works with the strip-to-wire version?

The strip-to-wire connectors are designed for 20–16 AWG multi-stranded sheathed cable or flat wire. Staying within this range helps ensure a firm clamp in the screw terminals and reliable power delivery to the LED strip.

Are these connectors suitable for outdoor or damp environments?

No. With an IP20 indoor rating, these 10mm 2-pin terminal blocks are intended for indoor, dry-location use only. For areas exposed to moisture, they should be protected inside suitable enclosures and paired with appropriately rated LED strips.

What is the difference between the strip-to-strip and strip-to-wire versions?

The strip-to-strip (board-to-board) version links two sections of 10mm mono strip directly in line, while the strip-to-wire (board-to-wire) version transitions from strip to power leads or jumper wire. Both styles use the same 2-pin, 4.5 mm pitch terminal block platform.

Do these connectors include any safety certifications or flame ratings?

Yes. The connectors use polycarbonate housing and copper contacts, carry a UL94V-0 flame-retardant rating, and are specified for 105°C (221°F) temperature resistance, supporting safe use in properly designed indoor LED strip installations.

Applications

AV-C10S-TBS-12PK Strip to Strip

Environment TEMP. -10 ~ 45°C / 50 ~ 113°F
Environment: Indoor
